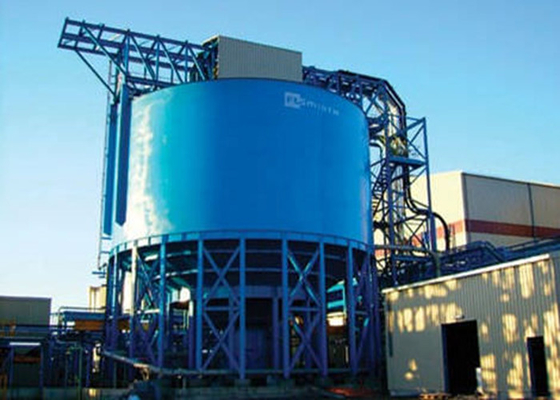

24m Diameter Gravity Sedimentation Classify Water Vertical Or Horizontal Installation

Product Description:

With a settling capacity of 452 m2, the Thickener Equipment has the ability to handle large amounts of materials in a single processing cycle. This machine is high efficiency and low energy consumption by our design in varous industries, including mining and wastewater treatment, paper making, chemical industy, etc.

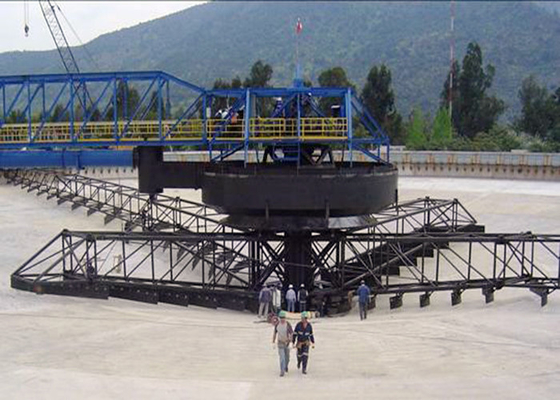

The whole equipment is consisted of tank, drive, material feeding, drainage section, rake and rake lifting device. According to the requirement of client, it can be divided into three types, i.e. center hydraulic hi-efficient thickener, center drive thickener and hi-efficient thickener. New structure and control are much convenience to speed up the material settling, increase capacity per unit area and reduce the turbidity of overflow.

Features:

• Classify and separate solids from liquids
• Efficient and reliable operation
• High capacity and low maintenance
• User-friendly design
• Robust construction with carbon steel material

Technical Parameters:

Applications:

• Mineral Processing
• Chemical Industry
• Environmental Protection
• Food Processing
• Chemical Industry
• Paper Making
• Metal Processing

Technical Process:

• During the thickening process, particles suspended in slurry is settled under the gravity force. At the settlement moment, the particles sink at acceleration by gravity function. After that, due to the water resistant, the acceleration of particle reduced, till the resistant force is same with particle gravity. Then the gravity keeps a constant settlement rate, which is called the final settling velocity.
• If the density of thicken slurry is small, it can ignore the collision and interreference between particles during settlement process. We call this free settling.
• If the density of thicken slurry is big, the mechanical resistant between particles during settlement process will be big. We call this interreference settling.
• The settling speed of free settling is fast than interreference one.

During the continuous thickening equipment, the settlement and concentration can be divided into clarifying section, settling section, pressing section and squeezing section.

FAQ:

Q: What is the brand name of the thickener equipment?

A: The brand name of the thickener equipment is UNIVEE.

Q: What is the model number of the thickener equipment?

A: The model number of the thickener equipment is U-TE-24

.

Q: Where is the thickener equipment manufactured?

A: The thickener equipment is manufactured in China.

Q: What are the applications of the thickener equipment?

A: The thickener equipment is commonly used in various industries such as mining, metallurgy, chemical, and environmental protection for solid-liquid separation and concentration processes.
