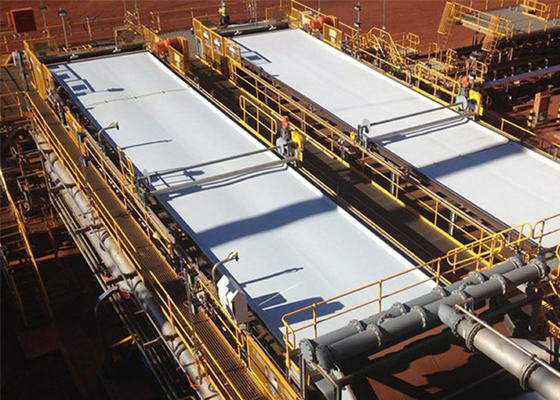

HVBF Horizontal Vacuum Belt Filter High Efficient Solid Liquid Separators

High Efficient Separation Equipment Horizontal Vacuum Belt Filter

1. Brief Introduction

Horizontal Vacuum Belt Filter(HVBF)is a kind of hi-efficiency solid-liquid separation equipment. With the supporting of vacuum box, the rubber belt is slipping on the vacuum box, which a sealing movement structure is formed between vacuum box and belt. The solid-liquid separation is achieved by a negative vacuum pressure.

2. Structure of Horizontal Vacuum Belt Filter

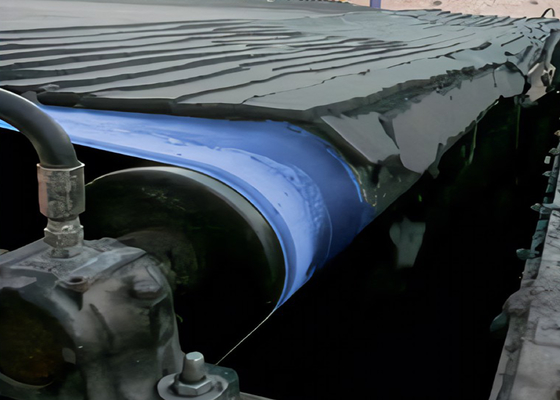

The filtrate section is along the horizontal direction of the horizontal vacuum belt filter, it can continuously achieves a serious technical processes of filtration, cake washing, discharging, filter washing, etc.. The mother liquid and cake washing liquid can be collected by different cavities.

It has an advantages of high filtration efficiency, big capacity, good washing efficiency, low cake moisture, flexible operation, easy maintenance, etc.

The HVBF is improved and completed during couple of years, the technical characteristics and quality are meet the international advanced level. It is widely applied in metallurgical industry, mine, chemical industry, papermaking, food industry, pharmacy, coal washing, environmental areas, especially in flue gas desulfurization (FGD) for gypsum dewatering and tailings treatment.

3. Outline Dimension and Techncial Parameter

3.1. Dimension of Vacuum Belt Filter

3.2 Techncial Parameter

4.  Main Equipment Description

5. Packing and Delivery

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.

Type of Packing:

6. FAQ

Q1: How to process an order for horizontal vacuum belt filter?

A: The product is customized, first of all, please provide your requirement details, our engineers will provide the prelimianry plan for your reference.

Q2: Do you offer guarantee?

A: Yes, we offer one year guarantee from the date of commissioning.

Q3. Can you offer Design Service?

A: Yes, we could design full solution drawings as per client's request.
