Overflow Clean Water Paste Thickener Equipment 3m-12m Depth Motor Drive

Name: Overflow Clean Water Paste Thickener Equipment 3m-12m Depth Motor Drive
Brand: Univee （Chongqing）Electrical Technology Co., Ltd
SKU: U-TE
Price: 8.00 USD
Availability: InStock

Brand Name:	UNIVEE
Model Number:	U-TE
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Capacity:

12-360t/d

Model:

U-TE-20

Depth:

3-12m

Motor Power:

5.5-22kw

Diameter:

20m

Supplier:

UNIVEE

Product Type:

Mining Equipment

Operating Principle:

Gravity Sedimentation

Condition:

Brand New

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

Water Paste Thickener Equipment

12m Depth Thickener Equipment

Product Description

Overflow Clean Water Paste Thickener 3-12m Depth Motor Drive Thickener Equipment

Product Description:

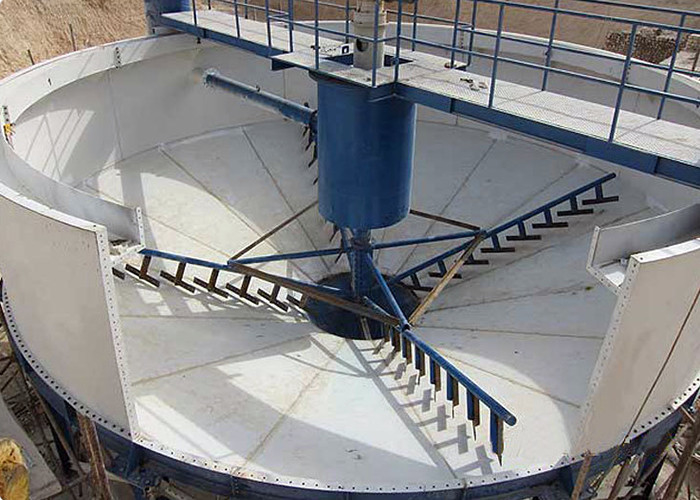

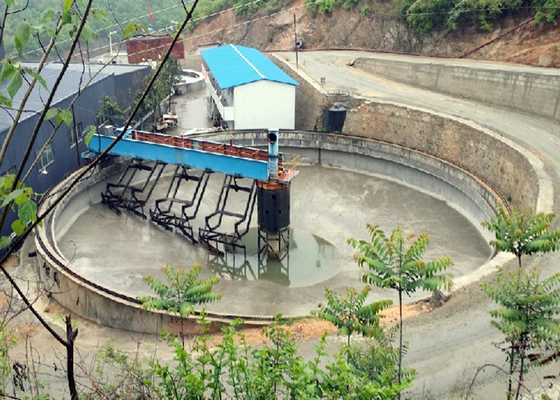

The operating principle of our Thickener Equipment is based on gravity sedimentation. The tapered bottom of thickener is a cylinder groove, consisted of concrete, wood or metal plates. Thickener can settle and concentrate the slurry solid density from 10~20% to 45~55% under the function of gravitation via the thickener rake. The thicken slurry is discharged from the bottom of thickener.

Thickener is widely used in solid-liquid industries such as wet metallurgy, mineral separation, chemical industry, etc. Diameter: 3-100meters.

Overflow Clean Water Paste Thickener Equipment 3m-12m Depth Motor Drive 0

Features:

Center buffing and deep slurry feeding, no feeding impact

Center hydraulic drive, with automatic rake protection

Adopt central reversal cone hopper, tailings squeezed twice, density of tailings increased, more stable.

Reasonable slurry reforming structure, increase the concentration efficiency

Surrounding overflow chute design, effective settling area increased, overflow liquid is more purity.

Technical Parameters:

Overflow Clean Water Paste Thickener Equipment 3m-12m Depth Motor Drive 1

FAQ:

Q: What is the brand name of this thickener equipment?

A: The brand name of this thickener equipment is UNIVEE.

Q: Where is this thickener equipment manufactured?

A: This thickener equipment is manufactured in China.

Q: What is the capacity of this thickener equipment?

A: The capacity of this thickener equipment varies depending on the model and specifications. Please refer to the product brochure or consult with our sales representatives for more information.

Q: What is the warranty period for this thickener equipment?

A: Please refer to the warranty policy provided with the product or consult with our sales representatives for more information on the warranty period for this thickener equipment.
