Desanding Hydrocyclone
Created with Pixso.

Flanged Connection Desanding Hydrocyclones Water Filtration Hydrocyclone Machine

Flanged Connection Desanding Hydrocyclones Water Filtration Hydrocyclone Machine

Brand Name: UNIVEE
Model Number: U-H
MOQ: 1 set
Price: Customized
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
China
Certification:
ISO
Maintenance:
Low Maintenance
Efficiency:
High Efficiency Separation
Size:
Inlet Pipe 200mm
Pressure Range:
0.03-0.4MPa
Capacity:
40m3/h
Inlet/Outlet Connections:
Flanged
Operating Principle:
Centrifugal Force
Condition:
New
Packaging Details:
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Highlight:

Water Filtration Hydrocyclone Machine

,

Flanged Connection Hydrocyclones

,

Flanged Connection Hydrocyclone Machine

Product Description

Water Filtration Flange Connection Desanding Hydrocyclone Low Operation Cost Large Capacity

Product Description:

Desanding hydrocyclone is mainly applied for classifying, separation, concentration and desliming in mine processing. When hydrocyclone combined with grinding machine, is used for classifying system. When for desliming, it used for heavy metal desliming. When applied in concentration and dewatering, it can do the tailings treatment and recycle.


The desanding hydrocycloneis designed to provide efficient Clarification of water.

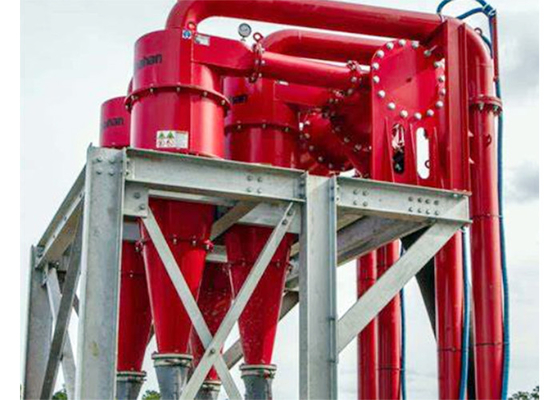

Flanged Connection Desanding Hydrocyclones Water Filtration Hydrocyclone Machine 0


Structure:

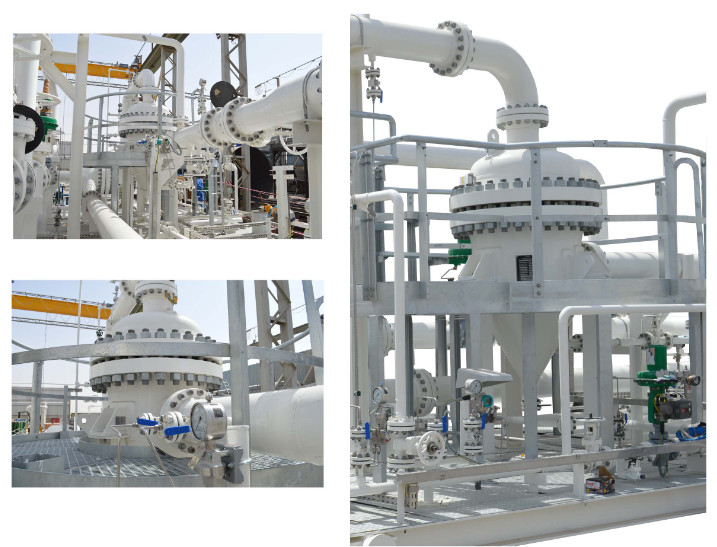

Flanged Connection Desanding Hydrocyclones Water Filtration Hydrocyclone Machine 1

1. Overflow Tank5. Stand
2. Desilting Tank6. Slurry Feeding Pipe
3. Desilting Outlet7. Slurry Pressure Tank
4. Hydrocyclone8. Overflow Pipe


Technical Parameters:

Inner Diameter (mm)Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

Capacity (m3/h)

Particle Size

(μm)

20040.50.55.6516.20.24.28.3215,200.05-0.425-40

40-100

30-100

15030.35.40.45.50

8.10.12.14.

16.18.20.22

8.15.200.05-0.411-20

30-74

20-74

12525.30.35.40

8.10.12.14.

16.18

7.150.05-0.48-1574-200

Applications:

The desanding hydrocyclone is highly versatile and can be used in various application occasions and scenarios such as:

  • Vortex Water Purification Unit
  • Cyclone Water Management System
  • Water Recycling System

Support and Services:

Customized design
Equipment supply
Installation and commissioning
Operator training and process optimization
Routine maintenance and troubleshooting
Spare Parts and consumables


Packing and Shipping:

Product Packaging:

  • The desanding hydrocyclone will be packaged securely in a durable cardboard box.
  • The box will be labeled with the product name, company logo, and handling instructions.
  • Inside the box, the product will be wrapped in protective material to prevent damage during shipping.

Shipping:

  • We offer standard shipping within the United States.
  • Shipping fees will be calculated based on the destination and weight of the product.


FAQ:

Q: What is the brand name of this desanding hydrocyclone?

A: The brand name of this product is UNIVEE.



Q: Where is this desanding hydrocyclone?

A: This product is made in China.



Q: What is the capacity of this desanding hydrocyclone?

A: The capacity of this product varies depending on the model, please refer to the product specifications for more information.
