100m2 Filtration Disc Water Filter Round Ceramic Disc Filter Wastewater

Product Description:

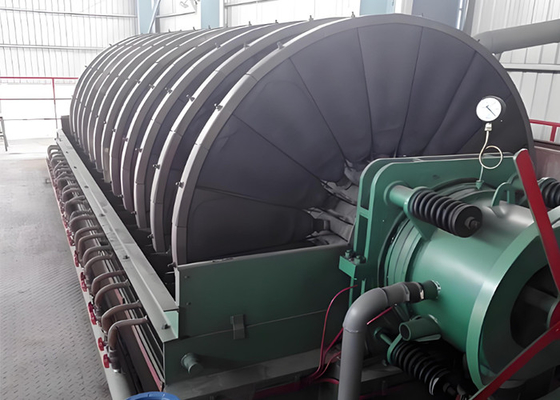

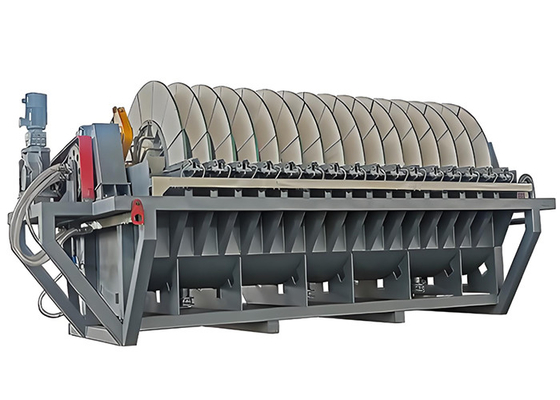

Disc filter is a kind of continuous vacuum filtration equipment, it is mainly consisted with tank, main shaft, filtrate disc, distribution valve, material stripping device washing unit, drive unit, discharge unit etc.

Features:

• The surface of sector filter chamber constituting filter disc is covered with bucket filter holes. This structure can optimize filtration area ratio of sector filter chamber skeleton. It is made of high-strength, high-toughness plastic or organic material, and service life has been increased several times.
• Filter cloth matches sector filter chamber to realize convenient locking and pressing.
• High-pressure automatic washing device can wash filter cloth exhaustively in all directions and maintain good dewatering effect of filter cloth.
• Break through existing problems that swing rod is not agitated uniformly, paddle agitation cost is high and sealing performance is unstable. New swing frame agitation device has multistage speed regulation function, and different swing forms can also be used according to slurry characteristics.
• Connection between filter sector and filtrate pipeline is fixed by modules, which is simpler, more convenient and quicker to replace.
• Distribution valve divides multiple areas to meet needs of process designs for different slurry.
• Vertical disc filter adopts unpowered filtrate discharge mode, which is more energy-saving and simpler than previous auxiliary forced filtrate discharge structure.

Technical Parameters:

Applications:

1. Gold Concentration
2. Copper Concentration
3. Iron Concentration
4. Zinc Concentration
5. Lead Concentration
6. Lead and Zinc Tailings
7. Fine Coal Concentration
8. Cyanide Residue
9. Zinc Oxide

Disc filter is mainly used in mining, power plant, chemical industry, water treatment and other industries. Because of low maintenance cost, small footprint and simple operation, it has been selected by more and more companies and it will replace traditional filtration equipment in the future.

FAQ:

Q: What is UNIVEE Disc Filter (U-DF)?

A: UNIVEE Disc Filter (U-DF) is a type of filtration system used for removing impurities from liquids. It is manufactured by UNIVEE in China.

Q: What type of liquids can UNIVEE Disc Filter (U-DF) be used for?

A: UNIVEE Disc Filter (U-DF) can be used for a wide range of liquids, including water, oil, and chemicals. It is suitable for both industrial and domestic applications.

Q: How do I maintain UNIVEE Disc Filter (U-DF)?

A: Follow the UNIVEE Disc Filter (U-DF) rmaintenance manual.
