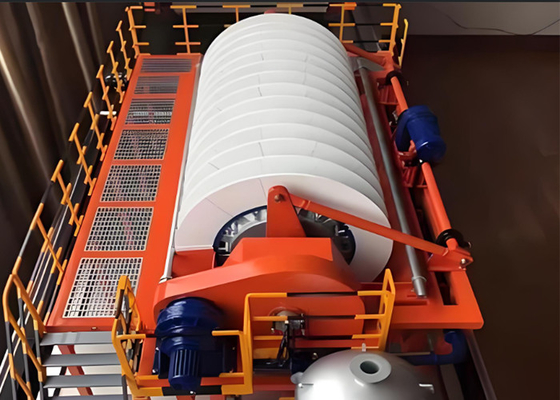

Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment

Name: Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment
Brand: Univee （Chongqing）Electrical Technology Co., Ltd
SKU: U-DF
Price: 8.00 USD
Availability: InStock

Brand Name:	UNIVEE
Model Number:	U-DF
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Disc Material:

Polypropylene

Vacuum System:

Available

Filtration Type:

Mechanical Filtration

Disc Diameter:

2600mm

Backwash:

Available

Installation:

Vertical

Power:

5 Kw

Application:

Sludge Treatment

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

2600mm Rotary Vacuum Disc Filters

Diameter 2600mm Vacuum Disc Filters

Vacuum Disc Filters For Wastewater Treatment

Product Description

Product Description:

The piled material layer remains in the groove or ringlike edges when the slurry flows passed the filter disc. The back washing process ensures the water washing from the inner to outside of the filter disc, which can flush the solid down and discharge from the sewage outlet.

The discs are compacted stack together in the cell. The groove between two disc layers can block and filtrate the solid in slurry.

The slurry flows into the filter, the particle size bigger than the groove shall be blocked in the external.

The filter disc is the core component of disc filter. A special grooved or ridged filter discs formed a certain dimensional channel, it can block the particle size larger than this channel to achieve the purpose of filtration. The disc filter has an excellent performance and lower consumption than traditional mechanical devices.

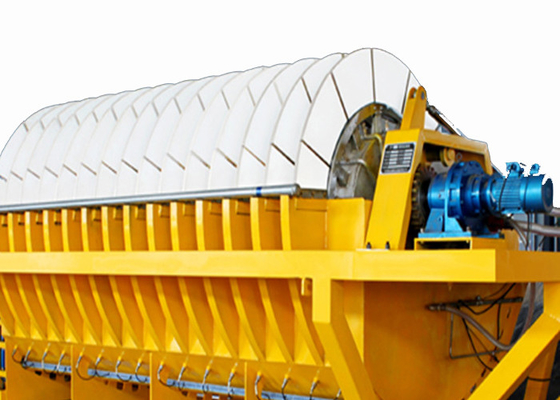

Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment 0

Features:

The surface of sector filter chamber constituting filter disc is covered with bucket filter holes. This structure can optimize filtration area ratio of sector filter chamber skeleton. It is made of high-strength, high-toughness plastic or organic material, and service life has been increased several times.

Filter cloth matches sector filter chamber to realize convenient locking and pressing.

High-pressure automatic washing device can wash filter cloth exhaustively in all directions and maintain good dewatering effect of filter cloth.

Technical Parameters:

Filtration Area	40 m2
Quantiy of Disc	5 pcs
Power	5.5 Kw
Capacity	0.2-1.2t/h·m2

Applications:

Sector Filter Chamber

There are two types of sector filter chamber. It can be divided into metal filter sector and non-metal filter sector according to different materials.

2. Stirring Device

Swing frame stirring deivce expands lateral area of striing rod and reduces perpendicular area of disc rotation direction, which reduce the resistance. Striier is equipped with an “arrow” type structure. It can not only easily mix slurry again under a fast sedimentation speed, but also can achieve stepless speed regulation.

3. Distribution Valve

It is generally composed of three parts. One is partition valve. It can divide the surface area of vertical discs into several areas to meet process needs for different slurry treatment. The second is filtration valve. Its surface is evenly distributed with some round holes. As the main filter media, filter cloth has a very important influence on filtration effect.

FAQ:

Q: What is the brand name of this disc filter?

A: The brand name of this disc filter is UNIVEE.

Q: What is the model number of this disc filter?

A: The model number of this disc filter is U-DF-31.

Q: Where is this disc filter manufactured?

A: This disc filter is manufactured in China.
