Desanding Separation Hydrocyclone Separator Slurry Classifying Device

Brand Name:	UNIVEE
Model Number:	U-HS
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Document:

Hydrocyclone parameter.pdf

Name:

Hydrocyclone

Capacity:

99%

Operation:

Centrifugal Force

Condition:

New

Material:

Mild Steel

Installation:

Easy Installation

Application:

Mining Industry

Service:

Available

Guarantee:

1 Year

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

Desanding Separation Hydrocyclone Separator

Slurry Classifying Hydrocyclone Separator

Product Description

Desanding Separation Hydrocyclone Separator Slurry Classifying Device

Product Description:

The hydrocyclone is a simple piece of equipment that uses fluid pressure to generate centrifugal force and a flow pattern which can separate particles or droplets from a liquid medium. These particles or droplets must have a sufficiently different density relative to the medium in order to achieve separation.

Hydrocyclones are commonly used for desliming, dewatering and sizing -4mesh (5mm) particles. They can be used in industries such as sand, aggregates, coal, industrial minerals, hard rock mining and more. The use of Hydrocyclones in washing and stockpiling is common in the construction aggregate industry.

The centrifugal force that is generated is capable of separating particulate solids down to around 5 to 10 microns in size.

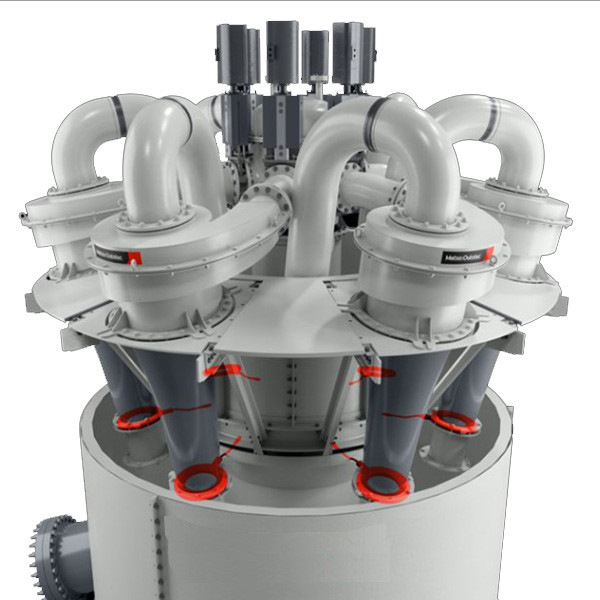

Desanding Separation Hydrocyclone Separator Slurry Classifying Device 0

Techncial Requirement

Inner Diameter (mm)	Overflow Pipe (mm)	Underflow Pipe (mm)	Cone Angle (°)	Feeding Pressure (MPa)	Capacity (m3/h)	Particle Size (μm)
750	240.260.280	120.140.160	20	0.03-0.4	400-500	74-250
660	180.200.220.240	80.110.150	20	0.03-0.4	250-360.	74-220
610	160.180.200.220	90.100.110	20	0.03-0.4	250-360	74-200
500	130.140.160.220	35.45.50.65.70. 80.90.100	10.20.25	0.03-0.4	140-220	74-200

Features:

Simple structure

Easy maintenance

Big processing capacity

Small footprint

Packing:

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.
Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.

Packed with fumigation package

Packed in plastic lorap, double bister and jute rope
