Vacuum Belt FIlter Tailings Slurry Separation Large Capacity Machine GB Standard

Vacuum Belt FIlter Tailings Slurry Separation Large Capacity Machine GB Standard

Brand Name:	UNIVEE
Model Number:	U-BF
MOQ:	1 pcs
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	1 set per 2 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Document:

Belt filter parameter 2.pdf

Name:

Vacuum Belt Filter

Belt Width:

3200mm

Grade:

GB Standard

Vacuum Sourse:

Vacuum Pump

Cake Discharge:

Scraper Or Belt Press

Drive System:

Variable Speed Drive

Condition:

New

Voltage:

380V

Frequency:

50Hz

Power:

60Kw

Service:

Available

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

Tailings Slurry Separation vacuum pump filter

GB Standard vacuum pump air filter

Product Description

Vacuum Belt FIlter Tailings Slurry Separation Large Capacity Machine GB Standard

Product Description:

The efficiency of a vacuum belt filter is often assessed based on the dry solids content of the product cake, solids recovery and lateral migration of sludge on the belt. Solids recovery is the percentage of dry solids recovered from the feed sludge. Solids recovery is dependent on the filter media which must be selected for good permeability to promote dewatering but with pore diameter sufficiently small so that solids recovery is not greatly decreased.

It is important that the belt press filter has an effective belt washing section so that blinding does not decrease the permeability of the belt. Solids recovery is directly related to filtrate quality and thus the filter media and process arrangement must satisfy the desired cake and filtrate qualities. Dry solids content is a measure of the degree of dewatering.

The degree of dewatering is increased when the belt speed is decreased. Lowering the belt speed reduces the capacity of the process.

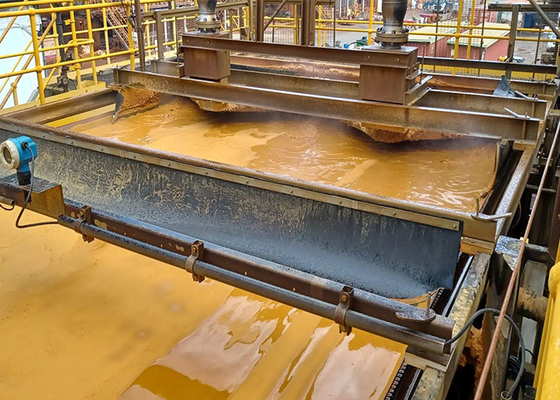

Vacuum Belt FIlter Tailings Slurry Separation Large Capacity Machine GB Standard 0

Woring Principle:

Technical Parameters:

Description	Specification
Product Name	Horizontal Vacuum Belt Filter
Filter Cake Wash	Counter-Current Wash
Material Of Construction	Stainless Steel Or Carbon Steel
Vacuum Source	Vacuum Pump
Operation	Continuous
Filtration Area	10-1000 M2
Drive System	Variable Speed Drive
Control System	PLC
Application	Solid-Liquid Separation

Application:

The Belt Filter is an ideal solution for slurry treatment in various industries. It is improved and completed during couple of years, the technical characteristics and quality are meet the international advanced level. It is widely applied in metallurgical industry, mine, chemical industry, papermaking, food industry, pharmacy, coal washing, environmental areas, especially in flue gas desulfurization (FGD) for gypsum dewatering and tailings treatment.

Support and Services:

Our techncial support and services in Belt Filter is including:

Installation and commissioning assistance
On-site training for operators and maintenance personnel
Regular maintenance and servicing options
Troubleshooting and technical support
Replacement parts and upgrades

We are committed to ensuring the optimal performance and longevity of your Belt Filter.
