Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control

Name: Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control
Brand: Univee （Chongqing）Electrical Technology Co., Ltd
SKU: U-BF
Price: 8.00 USD
Availability: InStock

Brand Name:	UNIVEE
Model Number:	U-BF
MOQ:	1 pcs
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	1 sets per 2 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Document:

Belt filter parameter 2.pdf

Name:

Vacuum Belt FIlter

Color:

Customized

Framework:

Steel And Roller

Power:

60W

Belt Width:

2800mm

Filtration:

Slurry

Application:

Solid Liquid Separation

Control:

PLC Or DCS

Operation:

Continously

Guarantee:

1 Year

Service:

Available

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

Waste Water Vacuum Belt Filter

Automatic Steel Frame Vacuum Belt Filter

Slurry Treatment Vacuum Belt Filter

Product Description

Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control

Product Description:

Significant developments in belt press filter technology include: cloth developments, using three belts and, the V-fold belt. Cloth developments include the double weave which incorporates different yarn types to combine the specific advantages of each. A double weave woven wire belt is also available which has a better life span and durability than a conventional wire belt.

The vacuum belt filter is a continously operating filter for vacuum filtration, cake washing and drying of high solids slurries. The technology is based upon a filter cloth supported by a drainage belt made of rubber, EPDM and other synhetic materials.

In the mining, chemical, and water treatment industries, the belt filter is a type of industrial equipment used in solid and liquid separation technologies such as sludge dewatering.

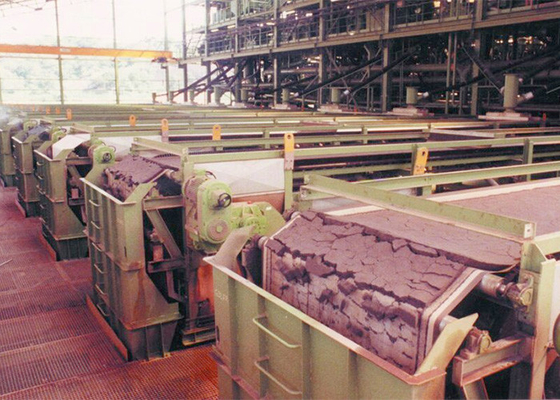

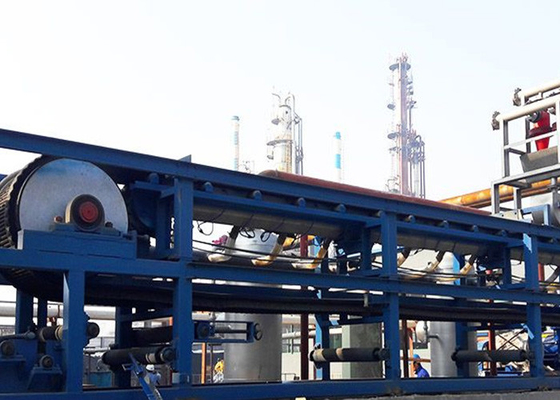

Waste Water Vacuum Belt Filter Slurry Treatment Steel Frame Support Automatic Control 0

Features:

Assembled frame block-design, it is very easy for transportation, installation and maintenance.

High automatic control; continuously automatic control of feeding, filtration, washing, dewatering, discharging, cloth washing; improve productivity efficiency; reduce operation cost; reduce the working strength of labors; improve working environment.

Convenience filtrating process; by adjusting the thickness of cake, amount of washing water, countercurrent washing grade, vacuum degree and speed of cloth can achieve to a best filtration efficient.

Applications:

Application of Materials	Liquid / Solid Ratio
Ciric Acid	5/1 - 3/1
Zinc Oxide	10/1
Ferromagnet	2.5/1 - 4/1
Sulphur Mine	4/1 - 2.5/1
Coal Ash	10/1
Gold Mine	2/1
Sulphuric Sludeg	1.5/1
Alumine	5/1 - 4/1
Wet Cement	2/1
Mining Tailings	6/1
ABS Resin	10/1

Technical Parameter:

Control System	PLC Or DCS
Filtration Area	10-1000 M2
Drive System	Variable Speed Drive
Application	Solid-Liquid Separation
Filter Cake Wash	Counter-Current Wash
Type	Continuous Vacuum Filter
Filter Cake Discharge	Scraper Or Belt Press
Material Of Construction	Stainless Steel Or Carbon Steel
Operation	Continuous
Vacuum Source	Vacuum Pump

FAQ:

Q: What is the brand name of the vacuum belt filter?

A: The brand name of the belt filter is UNIVEE.

Q: What is the model number of the vacuum belt filter?

A: The model number of the belt filter is U-BF.

Q: Where is the belt filter manufactured?

A: The belt filter is manufactured in China.
