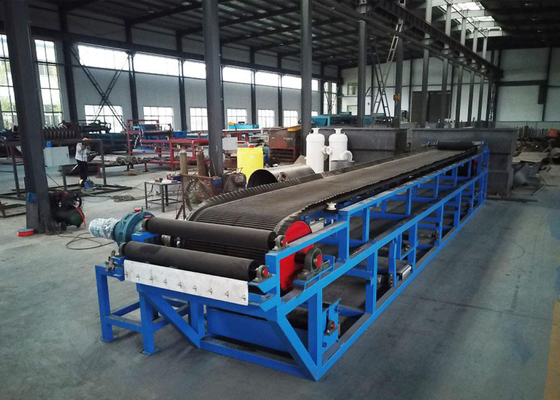

Variable Speed Horizontal Belt Filter PLC Control Vacuum Belt Filter

Product Description:

Horizontal Vacuum Belt Filter adopts fixed vacuum box, the endless rubber belt is driven and moves on the vacuum box by gearbox continuously. The filter cloth lays on the belt and moves with belt synchronously. A water sealing structure is formed between wear belt and rubber belt. The slurry feeds through the hopper and distributed on the cloth evenly. When vacuum goes through the vacuum box, a vacuum absorbing and filtration section are formed on the belt. The filtrate enters into the vacuum box through the cloth, holes and grooves on the belt. Solid particles remains on the cloth and cake formed. The filtrate in the vacuum box drainages by liquid tank. The cake moves into washing and dewatering section then discharged. After cake discharging, washing the cloth and adjusted then back to filtration section for recycling.

The Horizontal Vacuum Belt Filter is a type of continuous vacuum filter that is designed to handle a wide range of materials. The belt filter also can maximize separation efficiency with economic costs.

Features

Structure of Horizontal Vacuum Belt Filter:

Customization:

Customize your UNIVEE U-HVBF horizontal belt filter to meet your specific needs in solid-liquid separation industry. Our product and services allow you to choose the following attributes:

• Brand Name: UNIVEE
• Model Number: U-HVBF
• Place of Origin: China
• Application: Solid-Liquid Separation
• Filter Cake Wash: Counter-Current Wash
• Vacuum Source: Vacuum Pump
• Control System: PLC Or DCS
• Operation: Continuous

Our customization services ensure that your horizontal belt filter is tailored to the specific needs of your FGD or other separator application. Contact us to learn more about our customization options.

FAQ:

Q: What is the brand name of this horizontal belt filter?

A: The brand name of this horizontal belt filter is UNIVEE.

Q: What is the model number of this horizontal belt filter?

A: The model number of this horizontal belt filter is U-HVBF.

Q: Do you offer guarantee?

A: Yes, we offer one year guarantee from the date of commissioning.

Q: Can you offer Design Service?

A: Yes, we could design full solution drawings as per client's request.
