Stainless Steel Belt Press Dewatering 10m2 Horizontal Solid Liquid Filtration

Product Description:

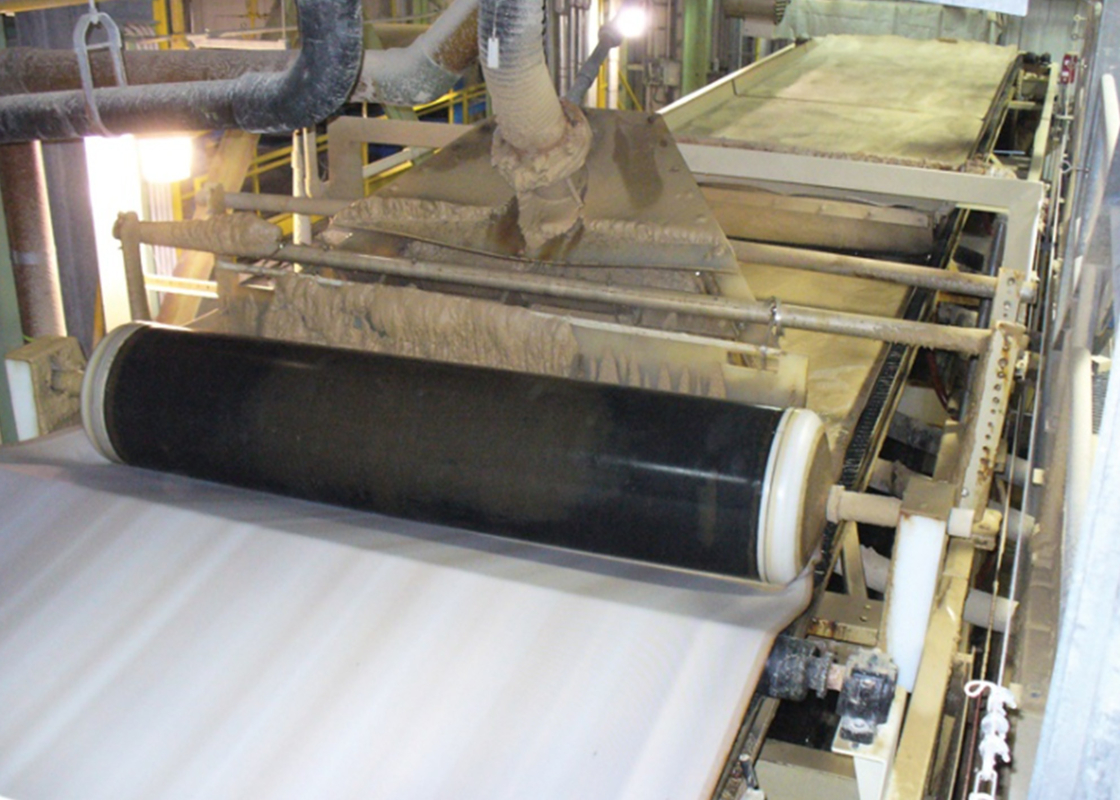

The Sludge Dewatering Horizontal Belt Filter also called vacuum belt filter is made of either stainless steel or carbon steel based on customized requests and material condition, which makes it a durable and long-lasting filtration system.

The filtrate section is along the horizontal direction of the horizontal vacuum belt filter, it can continuously achieves a serious technical processes of filtration, cake washing, discharging, filter washing, etc.. The mother liquid and cake washing liquid can be collected by different cavities.

It has an advantages of high filtration efficiency, big capacity, good washing efficiency, low cake moisture, flexible operation, easy maintenance, etc.

Features:

Main Equipment Description:

Vacuum Box Lifting Device

Vacuum box is assembled by sections, each section is connected with filtrate pipe to form a vacuum filtrate collecting system. With a lifting device of vacuum box, it is more convenience for wear belt replacement.

Tracking device

Adopt cylinder or bellows to adjust the tracking of cloth automatically by switching the tracking angles. It can ensure the normal operation of cloth.

Tension unit

By adjusting the tension of rubber belt to ensure the friction force of belt and no tracking happened.

Packing and Shipping:

Product Packaging:

• The Horizontal Belt Filter is carefully packed in a sturdy cardboard box.
• The product is wrapped in bubble wrap to ensure that it is protected from any damage during transit.
• A user manual and product warranty are included in the packaging.

Shipping:

• The product will be shipped via a reliable courier service.
• Shipping charges may vary depending on the destination.
• The estimated delivery time is 5-7 business days.
• A tracking number will be provided once the product has been shipped.

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is UNIVEE.

Q: What is the model number of this product?

A: The model number of this product is U-HVBF.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What type of filter is used in this product?

A: This product uses a horizontal belt filter.

Q: What are the dimensions of this product?

A: The dimensions of this product vary depending on the specific model, but they can be found in the product specifications.
