Horizontal Belt Filter
Created with Pixso.

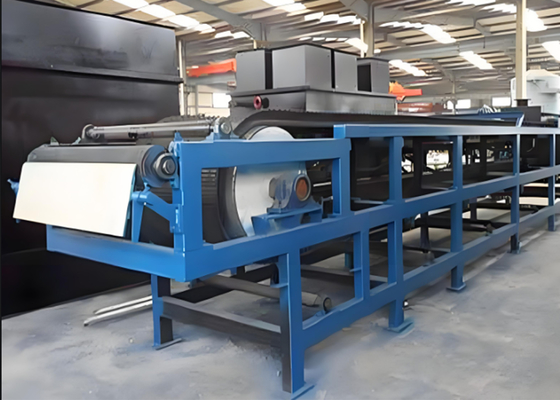

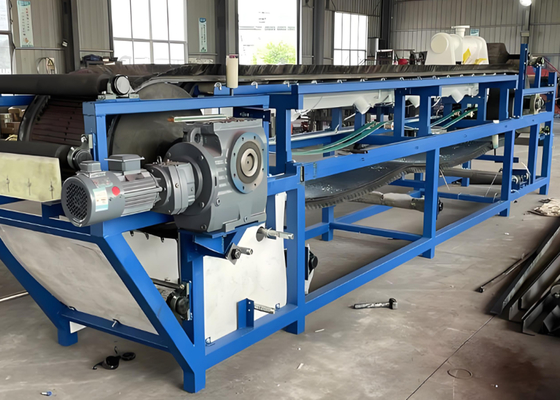

10m2 Solid Liquid Filtration Equipment Continuous Horizontal Belt Filter Separator

10m2 Solid Liquid Filtration Equipment Continuous Horizontal Belt Filter Separator

Brand Name: UNIVEE
Model Number: U-HVBF
MOQ: 1 set
Price: Customized
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detail Information
Place of Origin:
China
Certification:
ISO
Operation:
Continuous
Filter Cake Discharge:
Scraper Or Belt Press
Drive System:
Variable Speed Drive
Filter Cake Wash:
Counter-Current Wash
Vacuum Source:
Vacuum Pump
Application:
Solid-Liquid Separation
Control System:
PLC Or DCS
Material Of Construction:
Stainless Steel Or Carbon Steel
Condition:
Brand New
Filtration Area:
10 M2
Packaging Details:
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Highlight:

10m2 Solid Liquid Filtration Equipment

,

Continuous Horizontal Belt Filter

,

Horizontal Belt Filter Separator

Product Description

Filtration Area 10m2 Solid liquid Filtration Horizontal Belt Filter Separator

Product Description:

The Horizontal Vacuum Belt Filter is a type of continuous vacuum filter that is designed to handle a wide range of materials. The belt filter also can maximize separation efficiency with economic costs.



The Horizontal Vacuum Belt Filter, also known as a Belt FIlter, is a highly efficient separating solids from liquids.



The filtrate section is along the horizontal direction of the horizontal vacuum belt filter, it can continuously achieves a serious technical processes of filtration, cake washing, discharging, filter washing, etc.. The mother liquid and cake washing liquid can be collected by different cavities.

10m2 Solid Liquid Filtration Equipment Continuous Horizontal Belt Filter Separator 0

  • Main Equipment Description:

    Vacuum Box Lifting Device

    Vacuum box is assembled by sections, each section is connected with filtrate pipe to form a vacuum filtrate collecting system. With a lifting device of vacuum box, it is more convenience for wear belt replacement.



    Tracking device

    Adopt cylinder or bellows to adjust the tracking of cloth automatically by switching the tracking angles. It can ensure the normal operation of cloth.



    Tension unit

    By adjusting the tension of rubber belt to ensure the friction force of belt and no tracking happened.



Structure of Horizontal Vacuum Belt Filter:

10m2 Solid Liquid Filtration Equipment Continuous Horizontal Belt Filter Separator 1

1 Filter Cloth Washing 8 Filter Cloth Tension Unit
2 Belt Washing 9 Discharge Roll
3 Cake Washing Box 10 Drive Pulley
4 Slurry Feeding Hopper 11 Driven Pulley
5 Rubber Belt 12 Vacuum Box
6 Filter Cloth 13 Filter Support Frame
7 Filter Cloth Tracking Unit

Applications:

The UNIVEE U-HVBF Horizontal Belt Dehydrator is an ideal solution for slurry treatment in various industries. The HVBF is improved and completed during couple of years, the technical characteristics and quality are meet the international advanced level. It is widely applied in metallurgical industry, mine, chemical industry, papermaking, food industry, pharmacy, coal washing, environmental areas, especially in flue gas desulfurization (FGD) for gypsum dewatering and tailings treatment.



FAQ:

Here are some frequently asked questions about UNIVEE's U-HVBF Horizontal Belt Filter:

Q: What is the U-HVBF Horizontal Belt Filter?

A: The U-HVBF is a filtration device designed to separate solids from liquids using a horizontal belt that passes through a series of rollers and vacuum chambers.



Q: What is the capacity of the U-HVBF?

A: The U-HVBF comes in a range of sizes and capacities, with options for different belt widths and lengths. Please contact us for specific capacity information about the U-HVBF model you are interested in.



Q: What industries can use the U-HVBF?

A: The U-HVBF is used in a variety of industries, including mining, chemical processing, wastewater treatment, and food processing. It is an effective solution for separating solids from liquids in any application where high capacity and efficiency are required.
