Optimal Filtration Continuous Vacuum Filter Carbon Steel Separation Solid Liquid

Product Description:

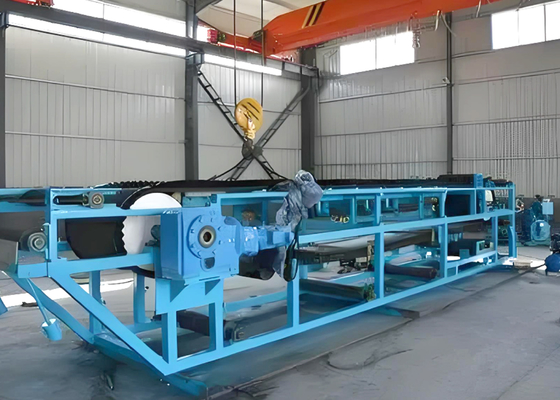

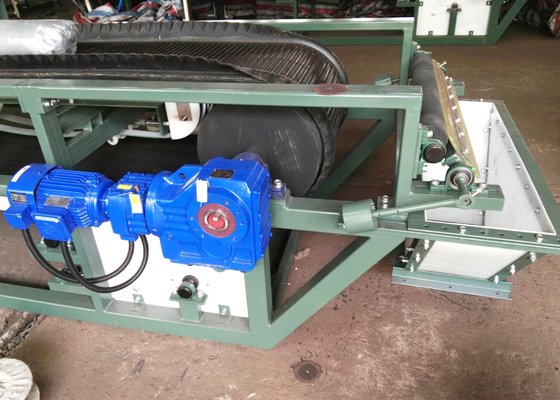

Horizontal Vacuum Belt Filter adopts fixed vacuum box, the endless rubber belt is driven and moves on the vacuum box by gearbox continuously. The filter cloth lays on the belt and moves with belt synchronously. A water sealing structure is formed between wear belt and rubber belt.

The slurry feeds through the hopper and distributed on the cloth evenly. When vacuum goes through the vacuum box, a vacuum absorbing and filtration section are formed on the belt.

The filtrate enters into the vacuum box through the cloth, holes and grooves on the belt. Solid particles remains on the cloth and cake formed. The filtrate in the vacuum box drainages by liquid tank. The cake moves into washing and dewatering section then discharged. After cake discharging, washing the cloth and adjusted then back to filtration section for recycling.

Features:

Main Equipment Description:

Vacuum Box Lifting Device

Vacuum box is assembled by sections, each section is connected with filtrate pipe to form a vacuum filtrate collecting system. With a lifting device of vacuum box, it is more convenience for wear belt replacement.

Tracking device

Adopt cylinder or bellows to adjust the tracking of cloth automatically by switching the tracking angles. It can ensure the normal operation of cloth.

Tension unit

By adjusting the tension of rubber belt to ensure the friction force of belt and no tracking happened.

Customization:

Customize your UNIVEE U-HVBF horizontal belt filter to meet your specific needs in solid-liquid separation industry. Our product and services allow you to choose the following attributes:

• Brand Name: UNIVEE
• Model Number: U-HVBF
• Place of Origin: China
• Application: Solid-Liquid Separation
• Filter Cake Wash: Counter-Current Wash
• Vacuum Source: Vacuum Pump
• Control System: PLC Or DCS
• Operation: Continuous

Our customization services ensure that your horizontal belt filter is tailored to the specific needs of your FGD or other separator application. Contact us to learn more about our customization options.

Packing and Shipping:

Product Packaging:

• The horizontal belt filter product will be packaged in a sturdy cardboard box.
• The box will be labeled with the product name, model number, and company logo.
• Inside the box, the product will be wrapped in protective packaging material to prevent damage during shipping.

Shipping:

• The product will be shipped via a reliable carrier, such as FedEx or UPS.
• The shipping cost will be calculated based on the destination and weight of the package.
• The customer will be provided with a tracking number to monitor the progress of their shipment.
• Delivery times may vary depending on the destination and carrier.
