Length 2.5m Slurry Filter Press DCS Control Separation Equipment Customized Size

Brand Name:	UNIVEE
Model Number:	U-PF
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Lid Color:

Clear

Name:

Vertical Press Filter

Frame:

Steel Frame

Spout Type:

Narrow

Dishwasher Safe:

Yes

Material:

Application:

Coal

Filter Size:

Customized

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

slurry filter press dcs

length 2.5m slurry filter press

dcs continuous filter press

Product Description

Length 2.5m Slurry Press Filter DCS Control Popular Separation Equipment Customized Size

Product Description:

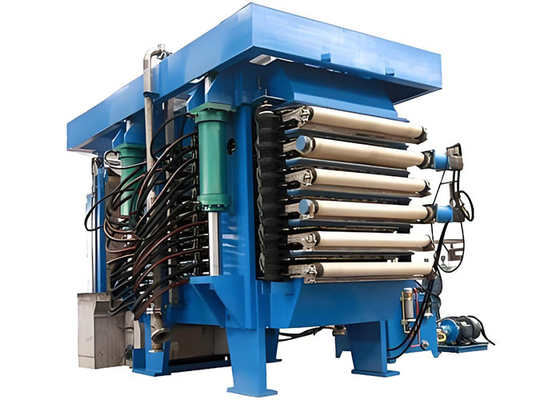

Vertical pressure filter is a kind of high-efficiency, energy-saving and intelligent solid-liquid separation equipment. lt makes full use of the slurry feeding pump pressure, slurry properties and rubber diaphragm extrusion pressure, and use filter cloth as filter medium to separate the solid and liquid from slurry.

Use stacked structure for the plates, use auxiliary guide device to make the operation become more stable.

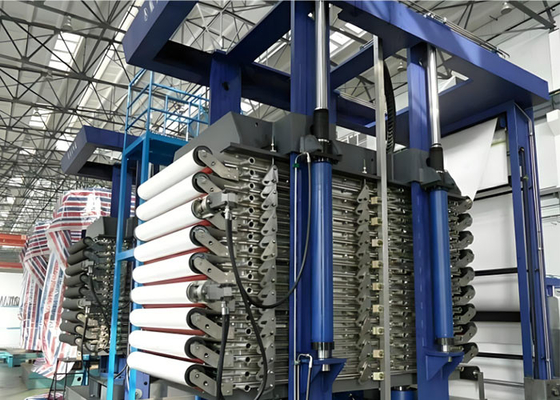

Length 2.5m Slurry Filter Press DCS Control Separation Equipment Customized Size 0

Features:

Reliable operation

Stable operation

Low consumption

Automatic control

High efficient

Easy operation

Better cloth washing effecient

Technical Parameters:

Filter area (m2)	1	2	3
Plate size (mm)	0.5m*/ layer
Plate Qty. (layer)	2	4	6
Length (m)	2.5
Width (m)	1.5
Height (m)	2.0	2.2	2.5
Weight (T)	8	9	10
Hydraulic station power (KW)	7.5
Extrusion pump head (m)	167
Extrusion pump flowrate (m/h)	8
Extrusion pump power (KW)	7.5

Applications:

Material	Feeding Density (g/l)	Exirusion Water Pressure (MPa)	Cake Thickness (mm)	Cake Moisture (% )	Capacity kg/m'.h
4A-zeolite	150-295	1.4	35	19~22	190~200
Sulfuret	~50	1.2	30	30	120
Lead	~50	1.2	30	15~20	35
Copper slag	600	1.6	40	8~9	310
Waste water sulphate	80	1.6	45	28~35	120~175
Calcination gold tailings	300	1.6	35	14~18	300~340
Superine aluminum.nydroxide	15~20%	1.6	20 C	29.5~32	65
Cu-Ni concentration	66.7	1.6	30	9.78	257
Copper concentration	45~50	1.6	35	7.6	360
Ni concentration	45-50	1.6	30	8	300~400
Tantalum-niobium smelt		1.6		20~25	200
Coal slime	30~35%	1.6	30	16~17	300
Slag iron	40%	1.6	28	<9	280
Goldlailings atterlolalion	20~30%	1.6	35	12-18	300
Mannitol		1.5		12	35
Zinc oxide powder	57%	1.6	18	20	90
Leachingresidve olzino okide	50%	1.6	10	18~20	70
Sulphur concentrate	10%	1.6	20	25-35	200
