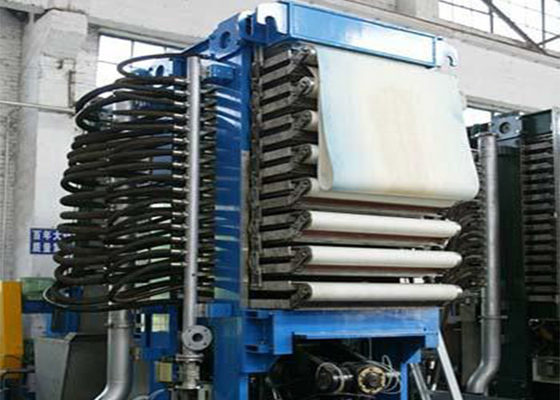

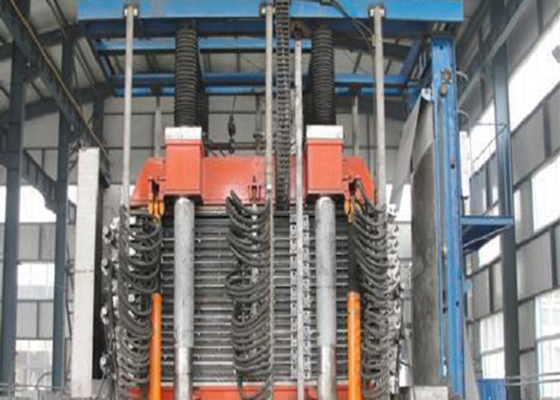

11Kw Wastewater Filter Press Square Frame Thin Cake Dewatering Filter Press

Brand Name:	UNIVEE
Model Number:	U-PF
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

Sludge Filter

Filter Shape:

Square

Filter Type:

Vertical

Condition:

New

Width:

Length:

3.7m

Service:

Available

Warranty:

1 Year

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

11kw wastewater filter press

wastewater filter press square

thin cake dewatering filter press

Product Description

Sludge Press Filter 11Kw Customized Square Frame Thin Cake Multi Pressing

Product Description:

stacked pressure filter is a kind of high-efficiency, energy-saving and intelligent solid-liquid separation equipment. lt makes full use of the slurry feeding pump pressure, slurry properties and rubber diaphragm extrusion pressure, and use filter cloth as filter medium to separate the solid and liquid from slurry.

11Kw Wastewater Filter Press Square Frame Thin Cake Dewatering Filter Press 0

Features:

Reliable operation

Integrate filtering, extrusion, washing, air-drying, cake discharging and cloth washing together.

Big extrusion pressure

Stable operation

Low consumption

Automatic control

High efficient

Easy operation

Better cloth washing effecient

Technical Parameters:

Filter Area (m2)	3	6	9	12	15	18	21	24
Plate size (mm)	1.5m*/layer
Plate Qty (Layer)	2	4	6	8	10	12	14	16
Length (m)	3.7
Width (m)	4.1
Height (m)	2.6	2.8	3.2	3.7	4.2	4.6	5.1	5.5
Weight (T)	12	13	14	15	16	17	18	19
Hydraulic station power (KW)	11
Extrusion pump flowrate (m/h)	28

Applications:

It is widely used in urban sewage, textile printing and dyeing, electroplate, papermaking, leather, brewing, food processing, coal washing, petrochemical industry, chemistry, metallurgy, mineral separation, pharmacy, ceramic industry sludge dewatering and so on.

Support and Services:

Customized design

Equipment supply

Installation and commissioning

Operator training and process optimization

Routine maintenance and troubleshooting

Spare Parts and consumables

Packing and Shipping:

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.

Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.

Packed with fumigation package

Packed in plastic lorap, double bister and jute rope

FAQ:

Q: Do you offer guarantee?

A: Yes, we offer one year guarantee from the date of commissioning.

Q. Can you offer Design Service?

A: Yes, we could design full solution drawings as per client's request.
