SIEMENS Control Vertical Filter Press 5.5m Width 3 Layers Automatic Filter Press

Brand Name:	UNIVEE
Model Number:	U-PF
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Filter Type:

Vertical Fiter

Control:

Siemens

Foot Print:

Narrow

Sealing:

Rubber

Width:

5.5m

Length:

5.1m

Condition:

New

Filter Shape:

Square

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

siemens control vertical filter press

vertical filter press 5.5m width

3 layers automatic filter press

Product Description

Rubber Sealing SIEMENS Control Design Press Filter 5.5m Width 3 Layers

Product Description:

Pressure filter is a kind of high-efficiency, energy-saving and intelligent solid-liquid separation equipment. lt makes full use of the slurry feeding pump pressure, slurry properties and rubber diaphragm extrusion pressure, and use filter cloth as filter medium to separate the solid and liquid from slurry.

The Press Filter is designed to make solid liquid filtration easy and efficient.

The press filter press allows for a quick and automatic process.

Working Principle:

Filtering	When the plates group closed, pump the slurry to filter, use distributed hose to feeding slurry to each slurry chamber, and filtrate pass through the cloth to filtrate frame and discharae out, the solid formed a cake on cloth surface.
Extrusion	High pressure water fed into upper chamber of rubber diaphragm, make the diaphragm expand and extruding the cake and the liquid will be extruding out from cake.
Cake washing	Washing water feeding into slurry chamber throuah distributed hose cover on the cake completely,under the pressure, the washing water pass throuah the cake and cloth to discharge out.
Air drying	Compressed air through distributed hose feeding into slurry chamber and pressing rubber diaphragm, make the high-pressure water in the rubber diaphragm to discharge out, and the compressed air pass through cake and take liguid out to decrease the cake moisture to the lowest level.
Cake discharging	When finished the air-drying process, open the plates group, drive system makes the cloth running and the cake discharge out on the two sides of filter at the same time.

Technical Parameters:

Filter area (m2)	18	24	30	36	42		48	54	60	66
Plate size (mm)	3.0m/layer
Plate Qty. (layer)	6	8	10	12	14		16	18	20	22
Length (m)	5.1
Width (m)	5.5
Height (m)	4.3	4.5	4.9	5.4	5.8		6.3	6.8	7.2	7.7
Weight (T)	31	33	35	37	39		41	43	45	47
Hydraulic station power (KW)	22
Extrusion pump flowrate (m3/h)	40					55
Extrusion pump head (m)	136 Nole: if extrusion pressure more than 1 3MPa, this data is 162					135 Note: I extrusion pressure more than 1 3MPa, this data is 166
Extrusion pump power (KW)	15 Note: if extnusion pressure more than 1.3MPa this datais 18.5					22 Note: it extrusion pressure more than 1 3MPa. this data is 30
Pipe washing pump head (m)	72
Pipe washing pump flowrate (m3/h)	36
Cloth washing pump head (m)	70
Cloth washing pump flowrate (m3/h)	20
Slurry feeding pump head (m)	70
Air drying pressure (Mpa)	0.8
Air drying tank volume (m3)	20	20	25	30	35	35	40	40	45	45
Air pressure for instruments (MPa)	0.7

Applications:

It is widely used in urban sewage, textile printing and dyeing, electroplate, papermaking, leather, brewing, food processing, coal washing, petrochemical industry, chemistry, metallurgy, mineral separation, pharmacy, ceramic industry sludge dewatering and so on.

Support and Services:

Our Press Filter product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to assist with installation, troubleshooting, and maintenance of the equipment.

Structure of Press Filter:

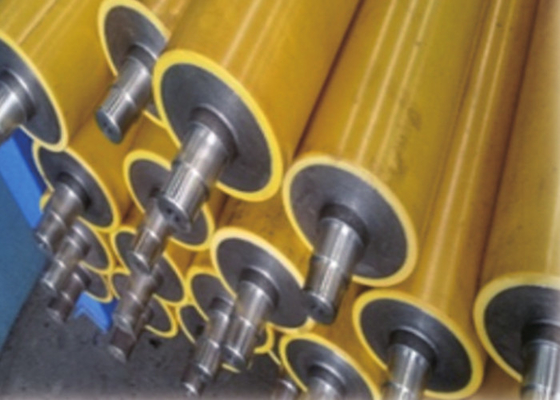

SIEMENS Control Vertical Filter Press 5.5m Width 3 Layers Automatic Filter Press 1
