500gsm-600gsm Polypropylene Filter Fabric Double Layer Weaving

Brand Name:	UNIVEE
Model Number:	U-FC
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

PP Cloth

Filter Cloth Size:

Custiomized

Width:

1-3 Meters

Thickness:

0.5-3mm

Weigh:

500-600g

Material:

Elongation:

10-30%

Weaving:

Double Layer

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

600gsm polypropylene filter fabric

polypropylene filter fabric double layer

500gsm polypropylene fabric filter

Product Description

Polypropylene 1-3 Meter 500-600g Filter Cloth Double Layer Weaving

Product Description:

Filter cloths have different types of yams such as monofilament, multifilament, staple fibre, in different natural or symthetic materials such as polyester, polyamide (nylon), ploypropylene, PTFE (Teflon), etc.

The main synthetic fiber are polypropylene, ployester, nylon, vinylon, etc. In which, polyester and polypropylene are the most common applicated ones in industries area.

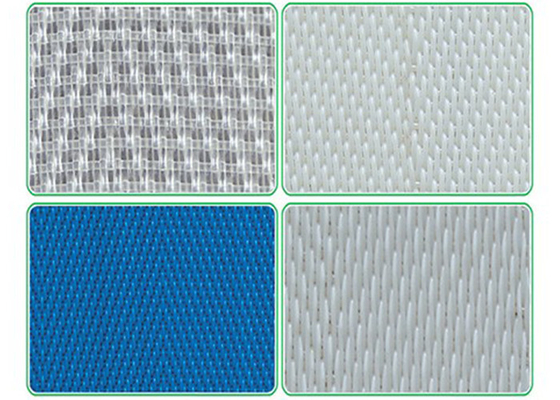

Weaving Method of Filter Cloth:

Stain
Sprial
Twill

Features:

High precision	Strong load
Acid resistance	Alkali resistance
High temperature resistance	Wear resistance

Technical Parameters:

Material	Air Permeability (L/m2.S) at 200Pa	Water Permeability (L/m2.S) at 1200Pa	Thickness (mm)	Weight (g/m2)	Interception accuracy (μm)	Acid Resistant	Alkali Resistant
PP	60~80	3.0~3.2	0.94	679	5~10	Excellent	Excellent
PP	20~40	2.5~3.0	1.05	714	5~8	Excellent	Excellent
PP	50~80	3.0~3.2	1.07	656	5~10	Excellent	Excellent
PP	80~130	5.3~5.4	1.12	660	20~25	Excellent	Excellent
PP	200~250	20~50	1.02	570	30~35	Excellent	Excellent

Applications:

Solid-liquid separation

Asphalt concrete mixing

Bioengineering and Medicine

Petrochemical and chemical industry

Automotive manufacturing

Oil / gas separation and purification

Electronics and electroplating

Coatings / paint inks

Support and Services:

Customized design

Equipment supply

Installation and commissioning

Operator training and process optimization

Routine maintenance and troubleshooting

Spare Parts and consumables

Packing and Shipping:

Product Packaging:

The filter cloth product will be carefully packaged to ensure it arrives in perfect condition. The cloth will be rolled up and placed in a sturdy, corrugated box with protective packaging material to prevent any damage during shipping.

Shipping:

The filter cloth product will be shipped via a reliable courier service. The shipping cost will depend on the destination and the weight of the package. Shipping times will vary based on the destination, but we will provide a tracking number so you can keep track of your order.
