Solid Liquid Filtration Cloth Medium PET Filter Fabric Double Layer

Solid Liquid Filtration Cloth Medium PET Filter Fabric Double Layer

Brand Name: UNIVEE
Model Number: U-FC
MOQ: 1 set
Price: Customized
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
China
Certification:
ISO
Name:
Cloth
Air Permeability:
250L/m2.s
Specification:
PET
Filter:
Sludge Filteration
Elongation:
10-30%
Marketing Type:
Hot Product
Condition:
New
Weaving:
Double Layer
Packaging Details:
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Highlight:

Solid Liquid Filtration Cloth

,

Medium PET Filter Fabric

,

Double Layer Filtration Cloth

Product Description

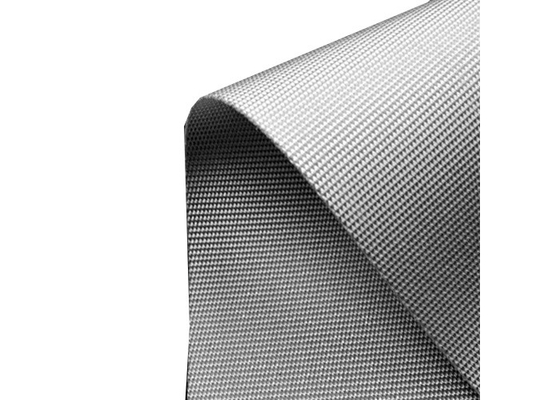

New Double Layer Filter Cloth Solid Liquid Separation Medium PET Material

Product Description:

As the main filter media, filter cloth has a very important influence on filtration effect. Monofilament multifilament filter cloth is also developed. It means monofilament and multifilament warp and weft interlacing; This filter cloth is thin. It has uniform distribution of holes and excellent anti-block performance. Not only is filtration effect outstanding, but cake discharge fluency and reuse performance are excellent.



Solid Liquid Filtration Cloth Medium PET Filter Fabric Double Layer 0

Features:

Good solid collecting, long service life
High speed of filtration, less blocking, stable filtration
Good solid exfoliation, no deformation
Good wearable condition

Technical Parameters:

Material PET
Air Permeability 220-270 L/m2s
Break Strength 2200 N/cm
Working Temperature ≤ 130℃
Acid Resistant Excellent
Alkali Resistant Excellent
Interception Accuracy 30-45 μm
Thickness 2mm
Weight 1470g/m2

Applications:

  • Wastewater treatment plants, where the U-FC filter cloth can be used to filter out impurities and contaminants from wastewater
  • Chemical processing plants, where the U-FC filter cloth can be used to filter out hazardous chemicals and other substances
  • Food and beverage production facilities, where the U-FC filter cloth can be used to filter out impurities and particles from liquids and other substances
  • Pharmaceutical manufacturing facilities, where the U-FC filter cloth can be used to filter out bacteria, viruses, and other contaminants
  • Oil and gas drilling operations, where the U-FC filter cloth can be used to filter out impurities and particles from drilling fluids and other substances


Packing and Shipping:

The filter cloth will be packaged in a sturdy cardboard box to ensure its protection during shipping. Each filter cloth will be wrapped in plastic to prevent any dust or dirt from accumulating on the cloth during transit.





FAQ:

Q: What is the brand name of the filter cloth?

A: The brand name of the filter cloth is UNIVEE.



Q: What is the model number of the filter cloth?

A: The model number of the filter cloth is U-FC.



Q: What are the applications of the filter cloth?

A: The filter cloth is widely used in industries such as mining, chemical, pharmaceutical, and food processing for solid-liquid separation.
