Sludge Filter Press Cloth Material 600gsm PP Filter Cloth Air Permeability

Name: Sludge Filter Press Cloth Material 600gsm PP Filter Cloth Air Permeability
Brand: Univee （Chongqing）Electrical Technology Co., Ltd
SKU: U-FC
Price: 8.00 USD
Availability: InStock

Brand Name:	UNIVEE
Model Number:	U-FC
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Air Permeability:

10-1000L/m2.s

Filter:

Sludge Filter Press PP Filter Cloth

Weigh:

600g

Specification:

Filter Cloth Size:

Custiomized

Condition:

New

Weaving:

Double Layer

Name:

PP Cloth

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

sludge filter press cloth material

filter press cloth material 600gsm

sludge press filter cloth

Product Description

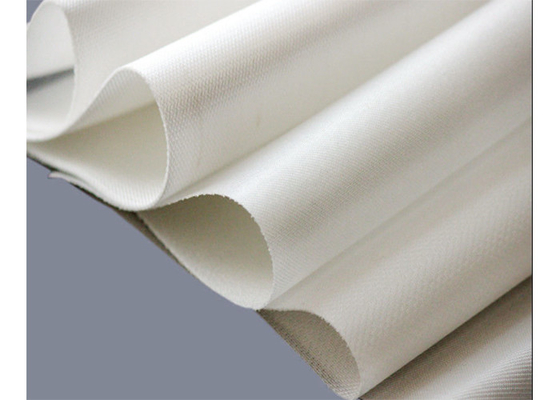

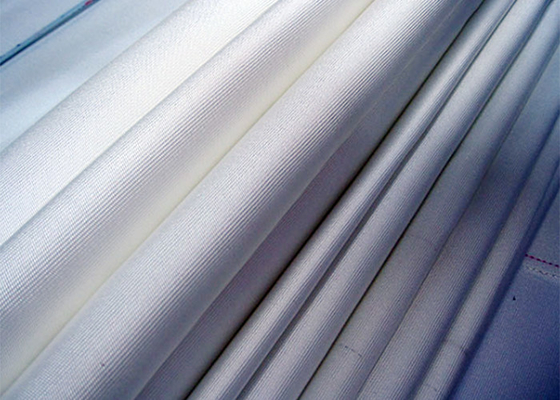

Sludge Filter Press PP Filter Cloth Air Permeability 600g Weight

Product Description:

The main synthetic fiber are polypropylene, ployester, nylon, vinylon, etc. In which, polyester and polypropylene are the most common applicated ones in industries area.

Select the filter cloth based on the nature of the sludge and particle size, which type can meet its filtration and effectively intercept the sludge particles, mainly for the filter cloth aperture size and its water permeability (air permeability), etc.

This type of fabric is generally used in solid-liquid separation but also in air filtration, either directly or as a support for finer specific filter media.

Sludge Filter Press Cloth Material 600gsm PP Filter Cloth Air Permeability 0

Features:

High precision	Strong load
Acid resistance	Alkali resistance
High temperature resistance	Wear resistance

Technical Parameters:

Material	Air Permeability (L/m2.S) at 200Pa	Water Permeability (L/m2.S) at 1200Pa	Thickness (mm)	Weight (g/m2)	Interception accuracy (μm)	Acid Resistant	Alkali Resistant
PP	60~80	3.0~3.2	0.94	679	5~10	Excellent	Excellent
PP	20~40	2.5~3.0	1.05	714	5~8	Excellent	Excellent
PP	50~80	3.0~3.2	1.07	656	5~10	Excellent	Excellent
PP	80~130	5.3~5.4	1.12	660	20~25	Excellent	Excellent
PP	200~250	20~50	1.02	570	30~35	Excellent	Excellent

Applications:

Filtering wastewater in a municipal treatment plant
Separating solids from liquid chemicals in a chemical processing plant
Filtering oil and gas production fluids in an offshore drilling rig
Filtering water in a swimming pool or spa
Removing impurities from drinking water in a water treatment plant

Support and Services:

Customized design

Equipment supply

Installation and commissioning

Operator training and process optimization

Routine maintenance and troubleshooting

Spare Parts and consumables

FAQ:

Q: What is the model number of this filter cloth?

A: The model number of this filter cloth is U-FC.

Q: Where is this filter cloth manufactured?

A: This filter cloth is manufactured in China.

Q: What is the size of this filter cloth?

A: The size of this filter cloth can be customized according to the needs of the customer.

Q: What is the material used in making this filter cloth?

A: The material used in making this filter cloth is high-quality synthetic fiber.
