Steel Frame Plate And Frame Filter High Efficient Industrial Filter Press

Name: Steel Frame Plate And Frame Filter High Efficient Industrial Filter Press
Brand: Univee （Chongqing）Electrical Technology Co., Ltd
SKU: U-PF
Price: 8.00 USD
Availability: InStock

Brand Name:	UNIVEE
Model Number:	U-PF
MOQ:	1 set
Price:	Customized
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Filter Type:

Multi Layer

Foot Print:

Small

Control:

DCS

Material:

Stainless Steel

Filtration Area:

6m2

Condition:

New

Service:

Available

Warranty:

1 Year

Packaging Details:

Steel frame, Wooden Case, Tray, Suitable for multi transpiration

Highlight:

Steel Frame Plate And Frame Filter

High Efficient Industrial Filter Press

plate and frame type filter press

Product Description

Steel Frame High Efficient Press Filter Narrow Foot Print Multi Layers

Product Description:

This Press Filter is effective filter which allows out impurities and particles from the liquids. It makes full use of the slurry feeding pump pressure, slurry properties and rubber diaphragm extrusion pressure, and use filter cloth as filter medium to separate the solid and liquid from slurry.

Adopt stacked structure for the plates, use auxiliary guide device to make the operation become more stable. Integrate filtering, extrusion, washing, air-drying, cake discharging and cloth washing together.

The extrusion pressure up to 1.6MPa, it widely used in the field which has different requirements for cake moisture.

Adopt hydraulic drive control system, make the operation stable and with low power consumption.

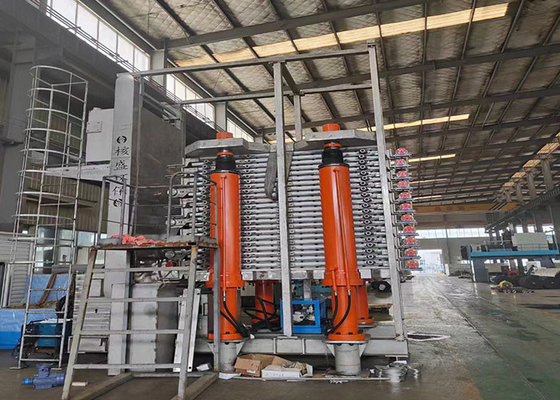

Steel Frame Plate And Frame Filter High Efficient Industrial Filter Press 0

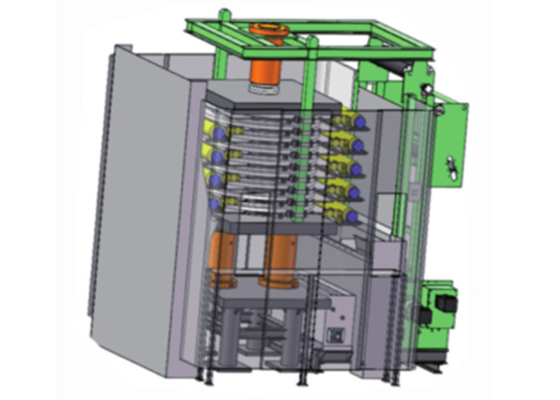

Structure of Press Filter:

Steel Frame Plate And Frame Filter High Efficient Industrial Filter Press 1

1	Bottom press plate
2	Columns
3	Quick reaction cylinders
4	Upper press plate
5	Frame
6	Cloth conveyor unit and cake chute
7	Plate frame unit
8	Rollers
9	Pipeline
10	Guiding component
11	Hydraulic Unit
12	Control panel
13	Valves
14	Cloth
15	Hydraulic pipeline
16	Side guards and maintenance platform

Applications:

Material	Feeding Density (g/l)	Exirusion Water Pressure (MPa)	Cake Thickness (mm)	Cake Moisture (% )	Capacity kg/m'.h
4A-zeolite	150-295	1.4	35	19~22	190~200
Sulfuret	~50	1.2	30	30	120
Lead	~50	1.2	30	15~20	35
Copper slag	600	1.6	40	8~9	310
Waste water sulphate	80	1.6	45	28~35	120~175
Calcination gold tailings	300	1.6	35	14~18	300~340
Superine aluminum.nydroxide	15~20%	1.6	20 C	29.5~32	65
Cu-Ni concentration	66.7	1.6	30	9.78	257
Copper concentration	45~50	1.6	35	7.6	360
Ni concentration	45-50	1.6	30	8	300~400
Tantalum-niobium smelt		1.6		20~25	200
Coal slime	30~35%	1.6	30	16~17	300
Slag iron	40%	1.6	28	<9	280
Goldlailings atterlolalion	20~30%	1.6	35	12-18	300
Mannitol		1.5		12	35
Zinc oxide powder	57%	1.6	18	20	90
Leachingresidve olzino okide	50%	1.6	10	18~20	70
Sulphur concentrate	10%	1.6	20	25-35	200

Support and Services:

Customized design

Equipment supply

Installation and commissioning

Operator training and process optimization

Routine maintenance and troubleshooting

Spare Parts and consumables

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is UNIVEE.

Q: What is the model number of this product?

A: The model number of this product is U-PF.

Q: Where was this product manufactured?

A: This product was manufactured in China.
