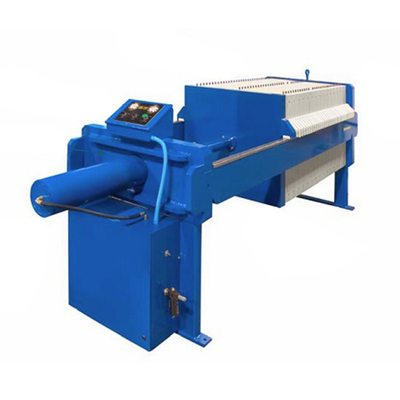

Customized Capacity PP Filtering Plate for Easy Maintenance and Press Filter Operation

Product Description:

The filter press is crucial in improving the quality and efficiency of industrial processes, making the separation of solids and liquids a controlled and beneficial process for many industries.

The Plate and Frame Type Filter Press is a versatile and widely used filtration system known for its efficiency in separating solids from liquids. At its core, the Plate and Frame Filter Press operates on a simple yet effective principle. It consists of a series of rectangular plates and frames that are stacked together. Each frame holds a filter cloth or filter paper, creating a chamber between the plates.

It is a widely used and efficient filtration device in various industries such as chemical, pharmaceutical, food processing, and wastewater treatment. The filter press consists of a series of vertical plates and frames arranged alternately. The plates have filter media, typically made of cloth or other porous materials, attached to them. The frames hold the plates together and provide support.

The filter press is renowned for its ability to handle large volumes of material with high levels of solids recovery and minimal operational costs, making it an indispensable tool in mining, chemical processing, food and beverage production, wastewater treatment, and numerous other industrial applications.

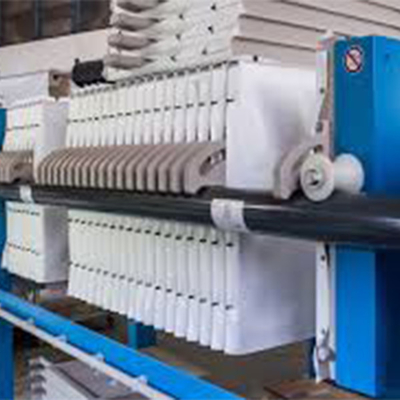

Structure of Press Filter:

Nowadays, filter plates are made from polymers or steel coated with polymer. They give good drainage surface for filter cloths. The plate sizes are ranged from 10 by 10 cm to 2.4 by 2.4 m and 0.3 to 20 cm for the frame thickness.

Operation Condition:

The operating pressure is commonly up to 7 bars for metal. The improvement of the technology makes it possible to remove large amount of moisture at 16 bar of pressure and operate at 30 bars. However, the pressure is 4-5 bars for wood or plastic frames. If the concentration of solids in the feed tank increase until the solid particles are attached to each other. It is possible to install moving blades in the filter press to reduce resistance to flow of liquid through the slurry. For the process prior to cake discharge, air blowing is used for cakes that have permeability of 10−11 to 10−15 m2.

Applications:

Filter presses are used in a huge variety of different applications, from dewatering of mineral mining slurries to blood plasma purification.

At the same time, filter press technology is widely established for ultrafine coal dewatering as well as filtrate recovery in coal preparation plants. According to G.Prat, the "filter press is proven to be the most effective and reliable technique to meet today's requirement". One of the examples is Pilot scale plate filter press, which is specialized in dewatering coal slurries.

Metallurgy and Exploration published an article highlighting this specific application. It was mentioned that the use of the filter press is very beneficial to plant operations, since it offers dewatering ultraclean coal as product, as well as improving quality of water removed to be available for equipment cleaning.

Support and Services:

Our Press Filter product comes with comprehensive technical support and services to ensure optimal performance and longevity:

• Installation and setup assistance
• Regular maintenance and cleaning recommendations
• 24/7 technical assistance hotline
• Replacement parts and accessories
• On-site repairs and maintenance services
• Training and education on proper use and maintenance

FAQ:

Q: What is the brand name of this press filter?

A: The brand name is UNIVEE.

Q: Where is this press filter manufactured?

A: This press filter is manufactured in China.

Q: What is the filtering capacity of this press filter?

A: The filtering capacity of this press filter varies depending on the model and specifications. Please refer to the product manual or contact customer support for more information.
