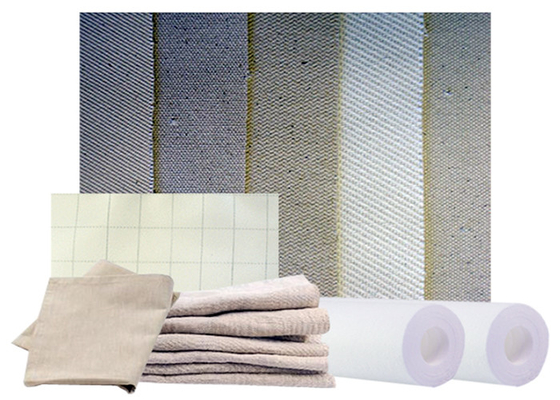

Air Permeability Sludge Filter Press Cloth High Anti Resistant Water Filter Fabric

Air Permeability Sludge Filter Press Cloth High Anti Resistant Water Filter Fabric

Brand Name: UNIVEE
Model Number: U-FC
MOQ: 1 set
Price: Customized
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
China
Certification:
ISO
Filter:
Sludge Filter Press PP Filter Cloth
Weaving:
Double Layer
Surface Treatment:
Calendering, Singeing, Heat Setting, Etc.
Mesh Count:
10-1000 Mesh
Air Permeability:
10-1000L/m2.s
Weigh:
850-1000g
Condition:
New
Service:
Available
Packaging Details:
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Highlight:

sludge filter press cloth

,

anti resistant water filter fabric

,

filter press cloth high anti resistant

Product Description

Air Permeability Sludge Press High Anti Resistant Filter Cloth Double Layer

Product Description:

Select the filter cloth based on the nature of the sludge and particle size, which type can meet its filtration and effectively intercept the sludge particles, mainly for the filter cloth aperture size and its water permeability (air permeability), etc.



The raw material structure of polyester short fiber filter cloth is short and hairy, the woven fabric is dense, and the particle retention is good.

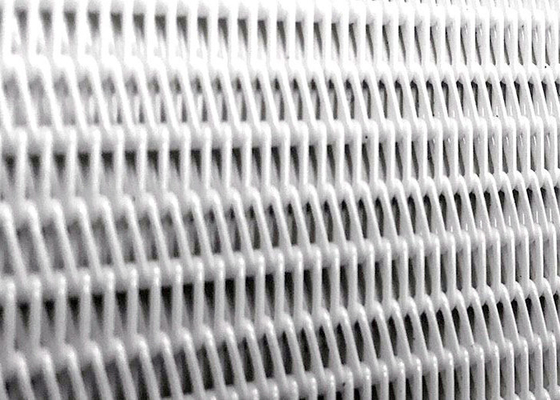

Air Permeability Sludge Filter Press Cloth High Anti Resistant Water Filter Fabric 0



Features:

  • Good trapping effect of solid objects ensure long life span.
  • Fast filtration speed
  • Less blockage
  • Good stripping property
  • No Expansion
  • Stable characteristics

Technical Parameters:

Material

Air Permeability

(L/m2.S) at 200Pa

Water Permeability

(L/m2.S) at 1200Pa

Thickness

(mm)

Weight

(g/m2)

Interception

accuracy (μm)

Acid Resistant Alkali Resistant
PET 80~100 5.0~6.0 1.15 983 8~10 Excellent Excellent
PET 160~190 18~20 1.12 983 20~25 Excellent Excellent
PET 250~300 20~23 1.00 810 30~35 Excellent Excellent
PET 350~400 23~25 1.00 810 30~35 Excellent Excellent
PET 450~500 26~30 1.08 818 50~60 Excellent Excellent

Applications:

Solid-liquid separation
Asphalt concrete mixing
Bioengineering and Medicine
Petrochemical and chemical industry
Automotive manufacturing


Packing and Shipping:

Product Packaging:

  • The filter cloth will be packed in a sturdy cardboard box to prevent any damage during shipping.
  • Each roll of filter cloth will be individually wrapped in plastic to protect it from dust and moisture.
  • The box will be labeled with the product name, quantity, and any special handling instructions.

Shipping:

  • The filter cloth will be shipped via a reputable courier service.
  • Shipping charges will vary based on the delivery location and the weight of the package.
  • Delivery times will vary depending on the destination, but we strive to deliver all orders as quickly as possible.


FAQ:

Q: What is the brand name of the filter cloth?

A: The brand name of the filter cloth is UNIVEE.



Q: What materials are used to make the filter cloth?

A: The filter cloth is made of high-quality synthetic fibers.



Q: What sizes are available for the filter cloth?

A: The filter cloth is available in various sizes and can be customized to meet your specific requirements.
